KEYENCE BT-A600 Mobile Computer

Rugged Android Handheld Computer with Advanced Barcode & OCR Scanning

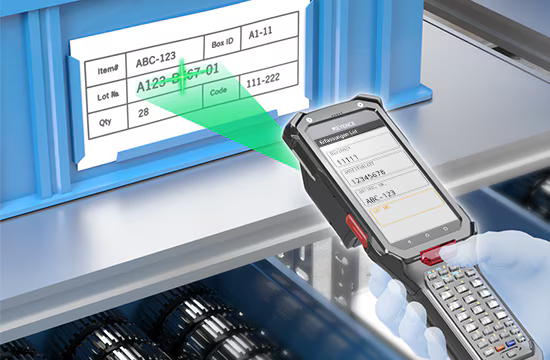

The KEYENCE BT-A600 Handheld Computer combines a rugged mobile computer with high-performance barcode scanning, advanced AI-assisted code reading, and OCR capabilities for demanding industrial and business applications. Designed for manufacturing, logistics, warehousing, inventory management, and traceability, the BT-A600 provides workers with a powerful mobile platform for capturing data wherever work takes place.

The BT-A600 uses a quad-camera scanning system powered by an 8-core CPU with a dedicated AI core, allowing it to rapidly read both near and distant barcodes while handling challenging codes that can be difficult for conventional scanners. KEYENCE’s AI filters are designed to help recognize codes affected by dirt, plastic wrapping, poor contrast, and other difficult conditions. The system can also support direct-part-marked (DPM) codes and OCR applications, making it particularly useful for industrial identification and traceability.

High-Performance Barcode Scanning

The BT-A600 is designed to make barcode data capture fast and reliable, even when products are moving through demanding industrial environments.

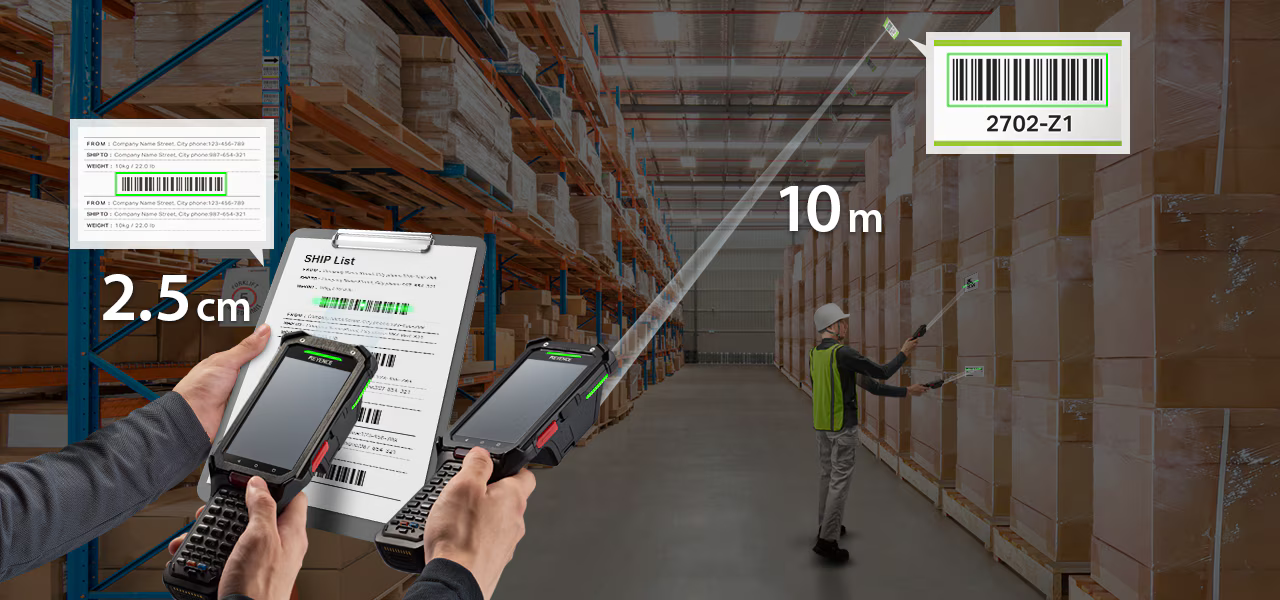

Its full-range camera system can capture codes from near and far distances, while a visible laser sight helps operators quickly aim the device at the intended barcode. KEYENCE also highlights the BT-A600’s ability to read through plastic film and handle difficult direct-part-marked codes.

Supported symbologies include:

• UPC / EAN / JAN
• Code 128
• GS1-128
• Code 39
• Code 93
• NW-7
• ITF
• Industrial 2 of 5
• GS1 DataBar
• QR Code
• Micro QR
• Data Matrix
• MaxiCode
• Aztec
• PDF417
• Composite codes
• Postal codes

The BT-A600 supports minimum resolutions of approximately 0.127 mm for barcodes and 0.191 mm for 2D codes, depending on the application and code type.

AI-Assisted Reading for Difficult Codes

One of the major advantages of the BT-A600 is its ability to use AI-assisted image processing to address challenging identification applications.

KEYENCE states that the device’s dedicated AI chip is trained using a database of more than 100,000 images, helping it recognize difficult codes and characters. Applications can include codes affected by oil, dirt, plastic film, poor spacing, background patterns, and other conditions.

This makes the BT-A600 particularly useful where conventional barcode scanners may struggle.

AI-OCR

The BT-A600 can also support OCR applications, allowing users to capture characters when a conventional barcode is not available.

Potential applications include:

• Serial numbers
• Expiration dates
• Production codes
• Work instructions
• Metal markings
• Tire markings
• Resin-molded characters
• Direct markings
• Seven-segment displays
• Handwritten information

This provides an additional data-capture option for products and components that don’t have easily readable barcodes.

Industrial Mobile Computing

The BT-A600 is more than a barcode scanner. It is a full Android handheld computer designed to run applications used for inventory, production, logistics, warehouse management, traceability, and other mobile workflows.

The device features Android 14, with the platform designed for upgrades up to Android 18, subject to KEYENCE’s applicable upgrade support. It includes 6 GB RAM and 64 GB internal storage, providing the processing and storage capacity needed for mobile business applications.

4.3″ Display & Physical Keyboard

The BT-A600 combines a 4.3-inch 480 × 800 LCD display with a 36-key physical keyboard and capacitive touchscreen.

This combination allows operators to interact with applications while also providing physical keys for fast data entry and scanning workflows. Optional attachments include a gun grip and ring trigger, providing additional ergonomic options for high-volume scanning applications.

Built for Demanding Environments

Industrial mobile computers need to withstand the environments where they’re actually used. The BT-A600 features an IP67 enclosure rating and is specified for operating temperatures from -20°C to +50°C (-4°F to +122°F). KEYENCE also specifies drop resistance of up to 3.1 metres and resistance to 20,000 repeated impacts under its stated test conditions.

This makes the BT-A600 well suited for applications where mobile equipment is exposed to drops, impacts, dust, moisture, temperature changes, and continuous daily use.

Wireless Connectivity

The BT-A600 provides wireless connectivity for applications where data needs to move between mobile workers and business systems in real time.

Connectivity includes:

• Wi-Fi 6 / IEEE 802.11ax
• 2.4 GHz
• 5 GHz
• 6 GHz
• Bluetooth 5.2
• NFC
• USB Type-C
• microSD / SDHC / SDXC

The BT-A600MGA variant additionally provides 5G/4G LTE/3G connectivity along with GPS, A-GPS, GLONASS, BeiDou, Galileo, and QZSS positioning capabilities.

Mobile Traceability & Data Capture

The BT-A600 is particularly well suited to IBC’s traceability solutions because it can act as the mobile data-capture point connecting physical products with digital records.

A typical workflow might look like:

Barcode / 2D Code → BT-A600 → Mobile Application → Database / ERP / WMS / MES

This can allow operators to capture product, inventory, production, shipment, and asset information at the point where the activity occurs.

Potential applications include:

• Inventory management
• Warehouse receiving
• Picking and shipping
• Work-in-progress tracking
• Production traceability
• Material tracking
• Asset tracking
• Quality control
• Serial number capture
• Lot tracking
• Field service
• Logistics
• Distribution

Ideal Applications

Manufacturing

Capture production information, work-in-progress, serial numbers, lot numbers, and component identification directly on the production floor.

Warehousing & Distribution

Use the BT-A600 for receiving, inventory counts, picking, put-away, shipping, and warehouse verification.

Wood Products & Forestry

Rugged mobile scanning can support identification and tracking in demanding wood products environments, including lumber, panels, components, inventory, and shipments.

General Inventory Management

Replace paper-based inventory processes with mobile barcode scanning and real-time data capture.

Traceability

Capture identification information at critical points throughout production and distribution to create a more complete digital history of products and materials.

KEYENCE BT-A600 Specifications

*Operating system upgrade availability is subject to KEYENCE specifications and support.

Why Choose IBC for the KEYENCE BT-A600?

IBC can provide more than the handheld computer itself. We can help integrate mobile computing into a complete barcode, RFID, labeling, inventory, and traceability system.

Our team can help with:

• Mobile computer selection
• Barcode scanning
• RFID integration
• Warehouse barcode system design
• Inventory management
• Traceability system design
• Label and tag selection
• Industrial printing
• Software integration
• ERP / WMS / MES integration
• On-site technology consulting

Whether you’re replacing legacy handheld computers or designing a new mobile data collection system, IBC can help determine how the BT-A600 fits into your overall workflow.

Key Benefits

AI-Powered Scanning
Read challenging barcodes and characters using KEYENCE AI-assisted image processing.

Near & Far Reading
Capture codes across a wide working range without constantly repositioning the device.

Industrial Durability
IP67 protection and rugged construction for demanding work environments.

Full Android Computer
Run mobile applications rather than using the device solely as a barcode scanner.

Advanced Data Capture
Barcode, 2D code, DPM, and OCR capabilities in one handheld platform.

Connected Workflows
Wi-Fi, Bluetooth, NFC, and optional cellular connectivity support real-time mobile data collection.

Need a rugged handheld computer for barcode scanning, inventory management, or traceability? Contact IBC to see if the KEYENCE BT-A600 is right for your application.
