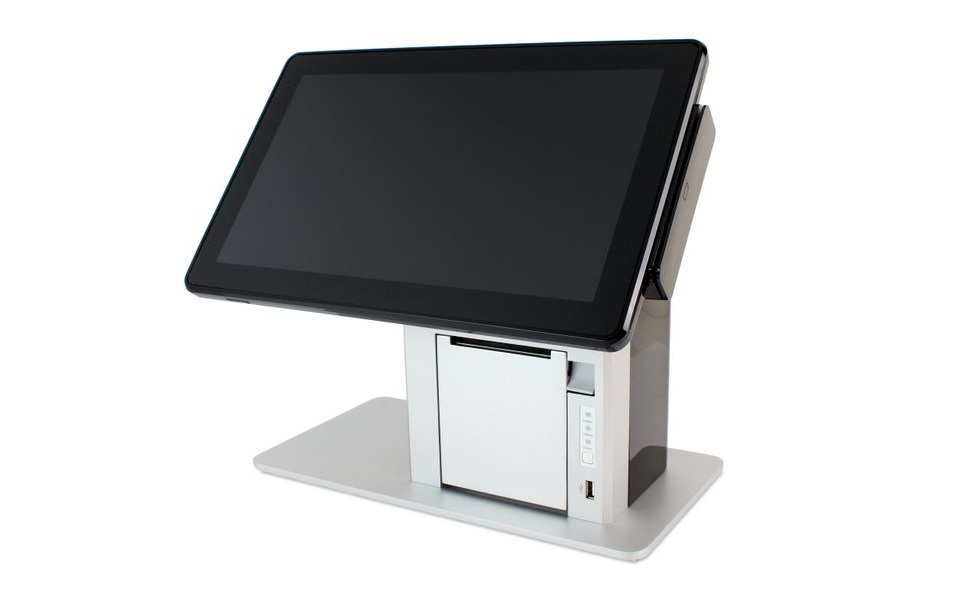

POS-X ION TP5 Touch PC

The POS-X ION TP5 features a 14″ widescreen with PCAP touch technology. With its sleek design and aluminum frame, ION TP5 is designed for retail, restaurant, or hospitality applications. The ION TP5 has a small footprint and a built-in receipt printer, saving you extra space and making it suited to nearly any coutertop. The ION TP5 runs an Intel Atom processor, powerful enough to handle whatever your POS needs may be.

An IP54 seal protects this computer from dirt and water splashes, maximizing uptime and a 3-year warranty with advanced replacement provides your business with many years of fantastic service.

Resilient Touch Display

The TP5 features a 14″ widescreen LCD with TruFlat projected capacitive (PCAP) multi-touch technology built to take the rigors of heavy every day use.

Beautiful and Functional

Built on a sturdy aluminum frame, the ION TP5 delivers a modern look for your business while maintaining a small footprint, saving you valuable counter space.

Splash Resistant Housing

With a IP54 Ingress Protection Rating, the TP5 was designed to withstand the harshest of environments.

Cost Effective Performance

Built on Intel’s mobile Bay Trail technology, the fanless ION TP5 is powerful and durable enough to handle the most demanding applications.

Integrated Printer (Optional)

The integrated printer means no external printer cables. Creating a clean, cable free environment.
AIO POS Terminal
AC Power Adapter
RJ45 to DB9 Serial Cable x 1

CPU: Intel Atom Z3735F up to 1.86GHz Quad Core
DRIVE: 32GB / 64GB SSD
MEMORY: 2GB DDR3
PORTS: USBx4; COM; LAN

INTERFACES: USB or Serial
EMULATION: ESC/POS
PRINT SPEED: 160mm/sec
RELIABILITY: 62.14 miles printed

14″ Widescreen LCD (1366 x 768)
BRIGHTNESS: 250 nit
TOUCH: P-CAP

DIMENSIONS: 14.3” x 7.8” x 13.4”
WEIGHT: 12.13 lbs / 10 lbs
TILTING ANGLE: 90°
