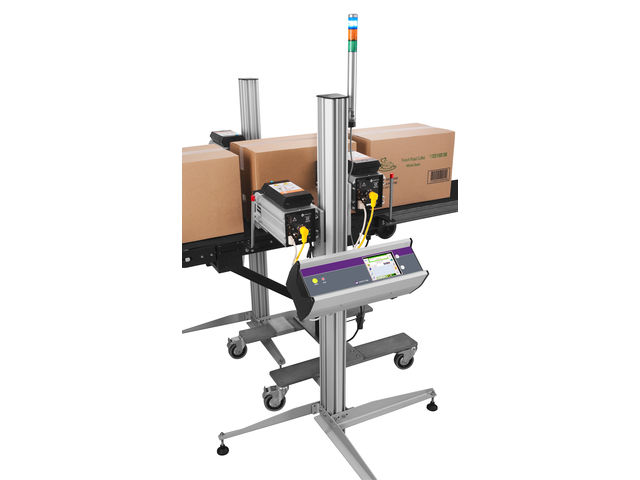

Markem Imaje 5800 Inkjet Printer

Your challenges

You need a high-contrast inkjet coder for text, logos and barcodes. Your coding needs to be done cost-effectively, producing codes that never bleed or fade. You have many print jobs or labels to manage, and you may even need to use multiple colors on a single line. Therefore, Markem Imaje 5800 piezo is perfect for you.

Our solutions

Markem-Imaje 5800 Touch Dry high resolution piezo  is the perfect coder for modern production lines. It produces high-contrast, highly scannable barcodes on a range of substrates. Its high-density Touch Dry ink achieves C-grade GS1-128 marking with minimal downtime, lower cost and less mess than labels. With inks that are solvent-free and safe, the Piezo 5800 can also help reduce your environmental footprint.

Key benefits

A compact controller box makes the printer ideal for limited floor space. With piezo printer technology, expect higher code volumes: up to 121 meters of coding per minute ranging from 65mm in height to 3000mm in length. Eight print densities are available using the four adjustable Intelli’Wax printheads, and you can use up to 4 different colors of ink on the same line. With the 5800 you can refill ink while the coder is in use, improving productivity. A simple menu structure and an easy-to-use touch screen provide effortless integration and operation, while our CoLOS job creation and data management system allows you to centrally manage prints and ensure consistency and traceability across your lines.

Print features
Printhead dpi
– Vertical dpi: 200
– Addressable jets: 256
– Nozzles: 512
Print densities available: 1 to 8
Encoder scaling: Allows for conveyor line speed
matching and for higher print speeds with a
reduction in the print resolution
Print area: Maximum/printhead print height:
65 mm (2.56”) Print length: 3,000 mm (39.3”)
Print specification: Full true type fonts supported
Printing of real-time clock (hr/min/sec), dates and
auto updating best before dates and serial numbers
Barcodes (Linear and 2D): ITF, Code 39, Code
128, EAN 128, EAN 8, EAN 13, UPC A, UPC E, Data
Matrix, RSS linear, RSS composite, QR, RSS 14, RSS
expanded, PDF 417
Operations

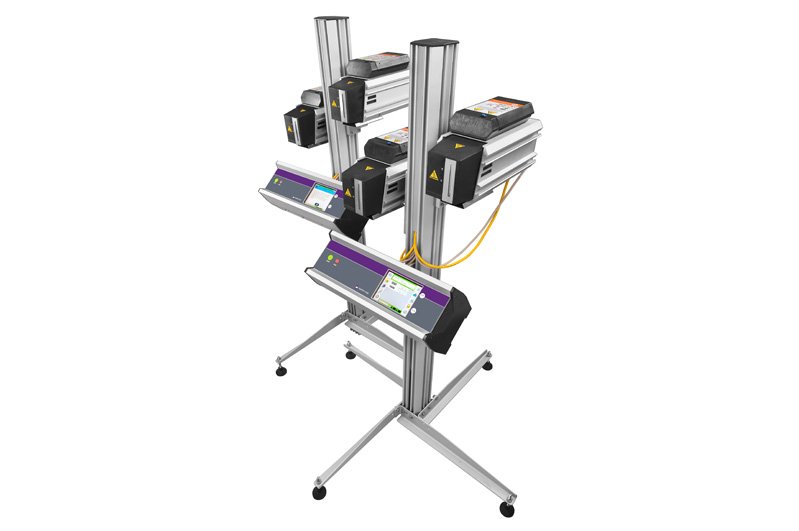

5800: Up to two printheads or
2 – 5800s in parent-child mode provide
up to four printheads
User interface: Color LCD touch screen used for
image selection, variable data entry, diagnostics
and system setup.
Selectable multi-language menus
Image preview
Access level password protection
Full system diagnostic menu
Printhead orientations: Vertical or up to 30º in
process direction
Software:
– CoLOS® Create image design software included
– CoLOS® Create Pro (Optional)
– CoLOS® Enterprise for networking (Optional)
Encoder options:
– Internal: For fixed conveyor speed printing
– External: For optimizing print quality
Recommended for barcode printing
Photo-edge sensors: Print (trigger) signal and a
maximum of two per system
Software interface:
– USB for downloading images, settings and
data files
– Ethernet (including web user interface)
– Communications protocols for PCs, PLCs
and packaging machines
– Compatible with Weihenstephan standard
Hardware outputs: (3) Fault relay
Ink replenishment: User prompted to add ink; can
be filled without the need to suspend printing
Interfaces: Hand held product select scanner
Other characteristics
Weight: Printhead: 7.2 kg Control box: 11.2 k
Touch Dry® hot melt inks: Available in various
series, colors
Electrical and environmental: 100-240 V, 50-60 Hz.
FCC Part 5 Subpart B, ICES 003; UL STD 62368-
1; Certified
to CSA STD C22.2 # 62368-1; ETL mark
for USA, Canada; CE: EMC directive 2014/30/EU,
Machinery directive 2006/42/EC
Operating environment of 0 to 40 ºC
(32 to 104 ºF). IP42 (controller only)
Manuals: Instruction manual and CD-ROM User
Guide (includes spare parts, options, and accessories
catalog)
Local language versions for the color user interface
Regional telephone technical and product support,
Web site technical and product support
Accessories
Printhead slide assembly
Signal tower assembly
Post print barcode scanner assembly
TU Look-up assembly
Optional expansion unit (OEU) – support 11 inputs,
8 outputs and 1 additional scanner port
Printer service kits
Preventive maintenance kits and contracts
On-site product and tech support
